The C-Vision HD, High Definition Video Recording System from C-Tecnics is a complete package of equipment that allows for the real-time viewing and recording of full high definition camera images onto magnetic hard disk drive, with the addition of a live on-screen display of serial data fields such as GPS data, or ship's survey NMEA data-stream. The system also incorporates two high intensity LED lamps and two laser pointer modules.
The C-Vision Nano is a portable video-capture system designed specifically for use with your laptop or portable computer for observing underwater operations. This uniquely developed unit, combined with its easy-to-use video monitoring and recording software, is ideal for a range of diving applications.
The C-Vision Nano is available in 1 or 2 channel versions, with LED light control and optional depth monitor.
The C-Vision Nano - Rack Mount is a video and communications capture system designed specifically for use with your laptop or portable computer for observing underwater operations. This uniquely developed unit, combined with its easy-to-use video monitoring and recording software, is ideal for a range of diving operations.
Just install the software, plug in and you’re ready!
Available in 1 or 2 channel versions with LED lamp control and optional depth monitor. Also available in a portable format.
The rack mounted version of our proven, reliable portable system. Tailored for fixed installations such as containerised systems, the C-Vision R is available in a range of configurations - up to 4 diver video recording channels and up to 4 communications channels (2 or 4 wire modes), RAW video output and compatible with the C-Tecnics C-DVR Blackbox Recorder.

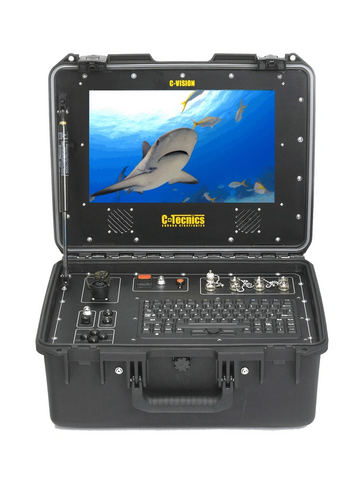

The C-Vision Solo is a superbly engineered video system for both inshore and offshore diving operations. The system allows video monitoring and recording in one easy to operate unit. The core of the C-Vision Solo system is the portable surface control unit, which incorporates video and variable light controls for a diver’s camera and light operated through a waterproof keyboard built into a rugged case.
An economical and reliable solution for diver video and communications monitoring; the E-Vision HD, available in single channel or 2 channel splitscreen versions, offers high definition diver video recording and playback from the built in 500GB hard disk drive and LED lamp dimming control. The 15'’ integrated foldable LCD monitor provides a crisp clear, anti-glare display during live video and playback.
Introducing the new 2-channel Analogue High-Definition video system - the E-Vision HD-2.
A robust and easy-to-transport video system with 2 independent diver video channels and LED lamp controllers. Each recording channel also features its own 4-key control pad for quick control commands, such as record, stop and playback.
A rack mount version of the popular E-Vision system, available with multiple channels. Born from the portable and robust E-Vision video recording system is the E-Vision R - a 19'’ rack mounted unit designed for fixed installations and dive control stations. An economical and reliable system for diver video and communications monitoring; the E-Vision R provides diver video recording and playback from the built in 500GB hard disk drive, LED lamp dimming control and an external audio-in function.
The C-Torch is designed to be used within saturation diving systems. Incorporating a Helium relief valve, rugged design and a bright output; this is the torch of choice for use within saturation diving chambers, diving bells and deck decompression chambers.

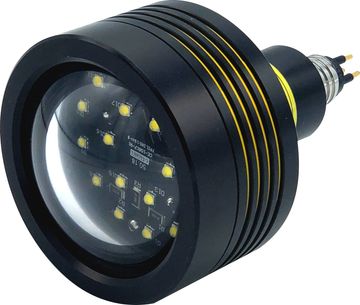

The CT4004 light projects a soft wide angled white light, producing an even illumination to adequately cover the angle of view for C-Tecnics cameras. Utilising one of the latest LED arrays the lamp produces a high light output for minimal power input. It is very rugged having no delicate lamp filaments and is "over temperature" protected.
The CT4006, or ''C-Lite'', is a compact and robust underwater LED light, designed to withstand pressure depth up to 1000m/3280ft. At 80mm long with a diameter of 30mm, and weighing only 144g, the CT4006 is one of the smallest & most economical LED lights available on the market.
Introducing the serial control model CT4011 Underwater LED Light. The control electronics allow control options of dimming the LED lamps via RS232, RS485 or a 0-5V control voltage. In serial control, RS232 or RS485, a preset list of commands allows the user to set individual addresses for each light, set intensity for each light and allows the use of multidrop in RS485 to control up to 16 LED Lights.
The CT4012 LED lamp projects a cool white light with wide angle view, producing an equal illumination to effectively cover the landscape angle for C-Tecnics cameras. Utilising one of the latest LED arrays the lamp produces a high light output for minimal power input.
The housing can be made with Aluminium, Stainless Steel or Titanium materials which helps to work at various operating depths.
This LED powered flashgun measures and emits an ambient light with automatic calculation of the required level of output to produce the correct amount of lighting for quality images. The Flashgun can also be set up manually should this be the preferred method of use.
The CT4015 Flashgun is optimally configured for use with the C-Tecnics Digital Stills Camera (CT3022) or C-Tecnics Dual Video and Stills Camera (CT3023), allowing a synchronised 'flash' when the stills are instructed.
The C-Laser subsea laser module is a compact, rugged solid state subsea laser that has been designed for a variety of underwater highlighting and identification tasks, or when used in pairs, for scaling and ranging operations. Two or more units can be mounted a known distance from one another and will produce red dots on the targets at an equivalent spacing such that accurate measurements can be taken.
With a number of ready-to-deploy and highly capable all-in-one subsea imaging systems available to choose from, we also develop custom-built systems for our broad and growing range of marine applications.
With the ability to capture digital stills in 4K and HD plus live HD video, SubC cameras provide industry-leading optics with exceptional value. This attention to detail ensures that our subsea cameras surpass the most crucial integration requirements of ROV, AUVs, Observatories, and more.
Our high-performance imaging systems are supported by powerful software that allows for unrivalled digital video recording (DVR), live streaming, and annotation. Our extensive solutions can also help you with the storage, management, and organization of your data. .
Like the rest of the SubC product line, our easily attached LEDs and lasers are software controlled and integrate easily into our camera systems to achieve stunning clarity in even the darkest environments.
