Gauges

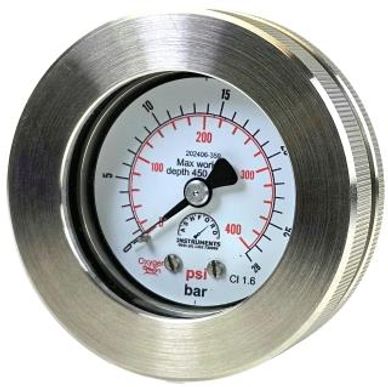

  63mm Subsea 450 Series back entry gauges is an ideal general purpose subsea gauge suitable for all subsea applications down to 450m depth. These instruments are suitable for all gaseous and liquid media that are not highly viscous and that will not solidify, crystallize, attack or corrode brass or 316 Stainless Steel.

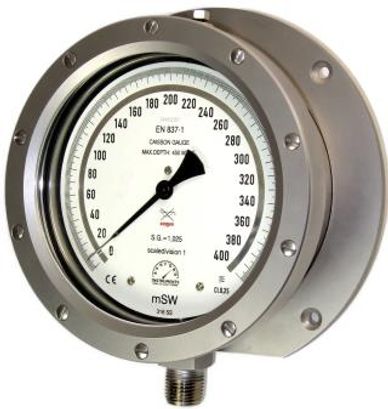

 160mm diameter "Caissub" sealed case caisson pressure gauge for mounting inside wet bells or other applications where the gauge is likely to be splashed or submerged in water. This gauge is used to measure the atmospheric pressure within the wet bell or caisson chamber and can if needed be submerged in water to a depth of 450m.

6" diameter ABS plastic case multiport premium pneumo gauge is a precision pressure gauge typically used for diver depth monitoring or for measuring the pressure within a hyperbaric chamber.

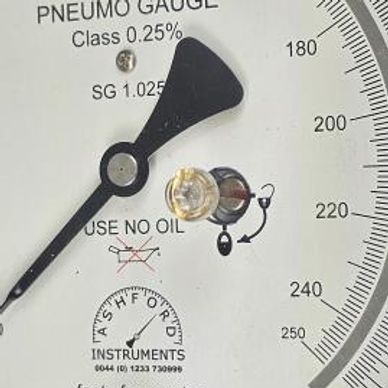

THIS DESIGN FEATURES OUR POPULAR TRANSIT LOCK USED TO PREVENT MOVEMENT AND DAMAGE TO THE GAUGE INTERNALS DURING TRANSPORTATION BEING OPERATED VIA AN ENGAGEMENT SCREW LOCATED ON THE FRONT OF THE GAUGE.

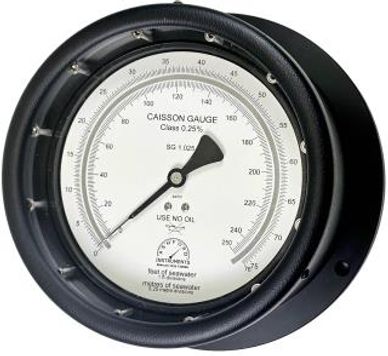

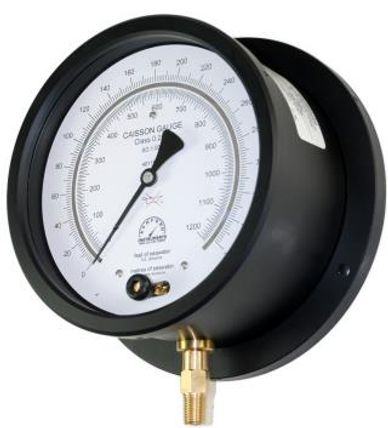

 4.5" - 8.5" diameter premium design black acetal plastic case caisson pressure gauge for mounting inside hyperbaric chambers, caissons, living chambers & decompression chambers to measure the simulated depth (pressure) inside the chamber.

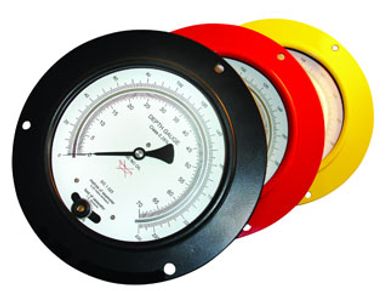

 Available in 150mm, 200mm, 250mm, 300mm and 8.5" diameters with a black ABS plastic case as standard in diameters 6" and 8.5" and black painted steel cases in diameters 200mm and 300mm.  With an accuracy of 0.25% full scale,.

 63mm - 250mm diameter compensated subsea gauge with rear compensating diaphragm to all process pressure to be measured against the ambient sea water pressure subsea.

 63mm, 100mm and 160mm diameters, this compound scale all stainless steel pressure gauge is specially designed for interlock applications where the pressure of the inner occupation chamber needs to be measured against the pressure in the outer entrance chamber.

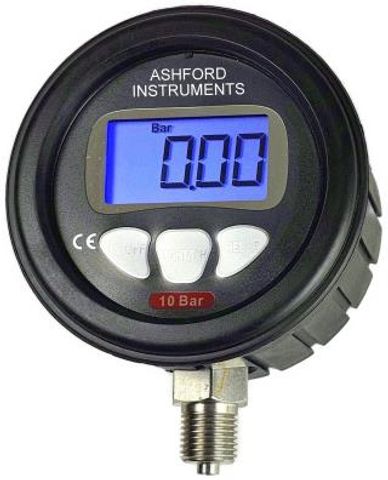

 63mm - 100mm diameter digital switch pressure gauge. The instrument offers high precision 0.5% full scale accuracy and backlight 4-digit display with four standard selectable scales (Bar, PSI, Kg/cm2 & MPA)

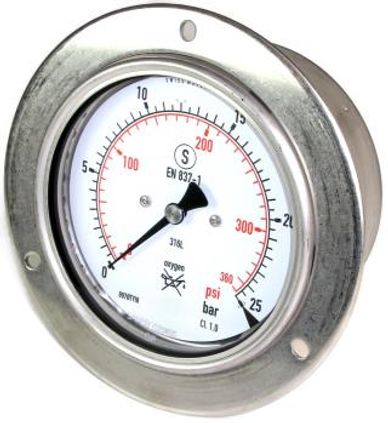

 63mm - 100mm diameter EN837-1 S3 oxygen use full safety pattern bourdon tube pressure gauge.  This gauge conforms to the IMCA (International Marine Contractors Association) Diving Division Detailed Sheet Number 19 LIfe Support Gauges as per the IMCA Code of Practice on The Initial & Periodic Examination, Testing & Certification of Diving Plant & Equipment.

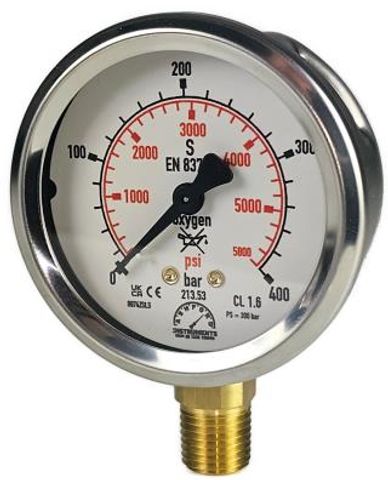

 63mm EN837-1 S2 compliant degreased bourdon tube pressure gauge suitable for oxygen enriched diver breathing systems.  This gauge conforms to the IMCA (International Marine Contractors Association) Diving Division Detailed Sheet Number 19 LIfe Support Gauges as per the IMCA Code of Practice on The Initial & Periodic Examination, Testing & Certification of Diving Plant & Equipment.

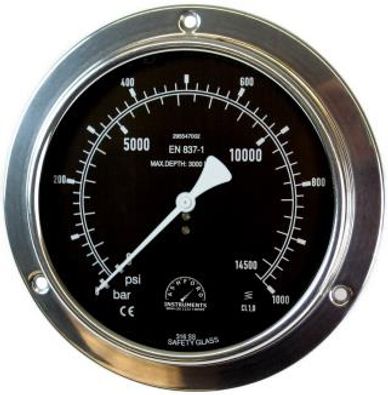

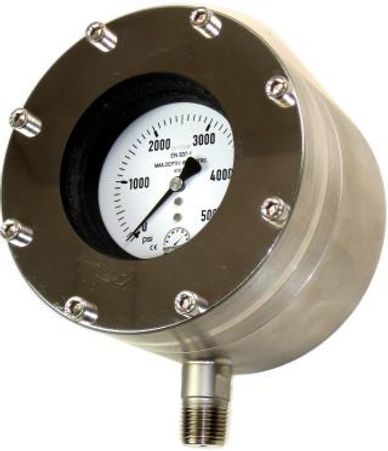

"Supasub" gauge with nominal 100mm diameter (140mm across bezel)  premium subsea bourdon tube pressure gauge suitable for submerged depths to 6000m as standard.

The case of this gauge is machined from a solid stainless steel block and is capable of withstanding an external pressure of 600 bar.

 Suitable to a maximum depth of 450m subsea, this 160mm diameter subsea test gauge with accuracy 0.25% full scale can be used on a variety of gas or fluid measurement applications.

 Gauges with standard accuracy of 0.025% available.

0-40 Bar                   0-400 MSW to 0-160 MSW

0-14 Bar                 0-140 MSW to 0-70 MSW

0-6 Bar                  0-60 MSW to 0-25 MSW
